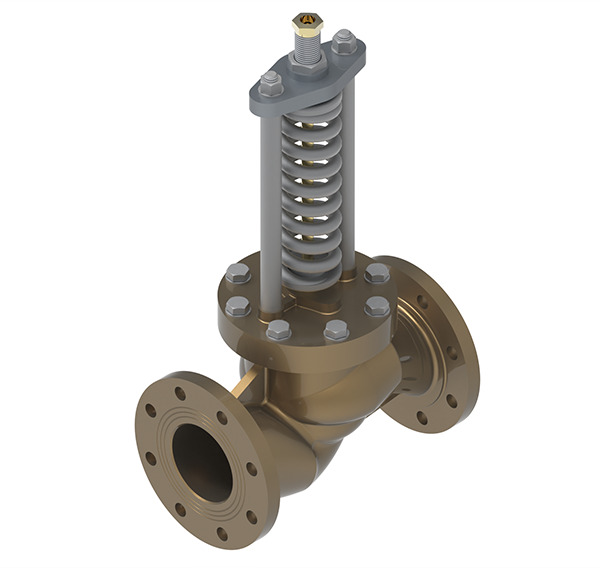

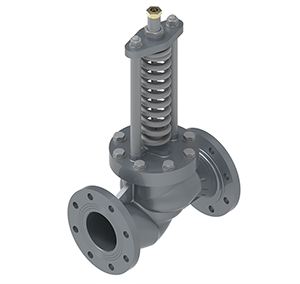

Safety Straight Valve
Details
Material selection
Design features
| Design |
EN 13789 / UNE-EN ISO 4126-1 |
| Face to face |
EN 558 series 1, (DIN 3202 F1) |
| Flanges |
Flange according to EN 1092 (DIN 2501) |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
| Size |
DN |
15–150 |
|
PN |
16 |
10 |
| Maximum pressure |
Up to 100ºC |
16 |
10 |
Design features
| Design |
EN 13709 / UNE-EN ISO 4126-1 |
| Face to face |
EN 558 series 1, (DIN 3202 F1) |
| Flanges |
Flange according to EN 1092 (DIN 2501) |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
| Size |
DN |
15–150 |
|
PN |
10 |
16 |
| Maximum pressure |
Up to 100ºC |
9,4 |
15 |
Design features
| Design |
EN 13709 / UNE-EN ISO 4126-1 |
| Face to face |
EN 558 series 1, (DIN 3202 F1) |
| Flanges |
Flange according to EN 1092 (DIN 2501) |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
| Size |
DN |
15–150 |
|
PN |
10 |
16 |
| Maximum pressure |
Up to 100ºC |
9,5 |
15,2 |
Optional features
| Integrated Logistics Support (ILS) |
Technical documentation (QR access)
Spare parts procurement (LCRS)
Logistics engineering (obsolescence / costs) |
More than a valve. A solution ready to evolve.
