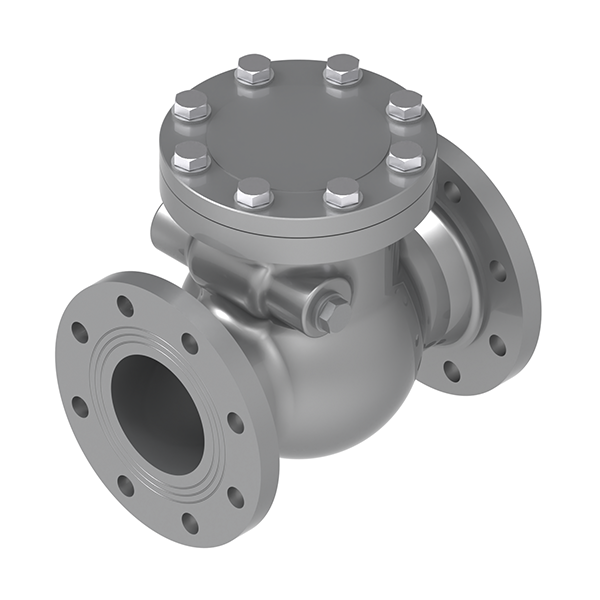

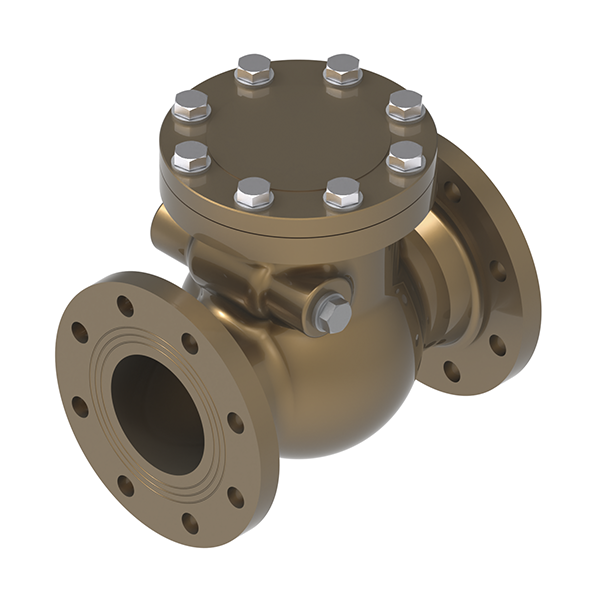

Swing Check Straight Valve
Swing Check Straight Valve
Details
Material selection
Design features
| Design |
UN EN 16767 |
|
Face to face |
EN 558-1 (DIN 3202 F6)
| Flages |
Flanges according to EN 1092 |
| Seat |
Metal seated |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
| Size |
DN |
32–250 |
|
PN |
16 |
10 |
| Maximum working pressure |
Up to 100°C |
10 |
16 |
| Up to 225ºC |
6,6 |
10,7 |
Design features
| Design |
UN EN 16767 |
|
Face to face |
EN 558-1 (DIN 3202 F6)
| Flages |
Flanges according to EN 1092 |
| Seat |
Metal seated |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
| Size |
DN |
32–250 |
|
PN |
10 |
16 |
| Maximum pressure |
Up to 100ºC |
9,4 |
15 |
| Up to 225ºC |
8 |
12,8 |
Design features
| Design |
UN EN 16767 |
|
Face to face |
EN 558-1 (DIN 3202 F6)
| Flages |
Flanges according to EN 1092 |
| Seat |
Metal seated |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
| Size |
DN |
32–250 |
|
PN |
10 |
16 |
| Maximum pressure |
Up to 100ºC |
9,5 |
15,2 |
| Up to 225ºC |
7,3 |
11,6 |
Optional features
| Integrated Logistics Support (ILS) |
Technical documentation (QR access)
Spare parts procurement (LCRS)
Logistics engineering (obsolescence / costs) |
More than a valve. A solution ready to evolve.
