Gate Valve Rising Stem

Gate Valve Rising Stem

Details

Gate valve rising stem. 100% valves tested.

Material selection

Design features

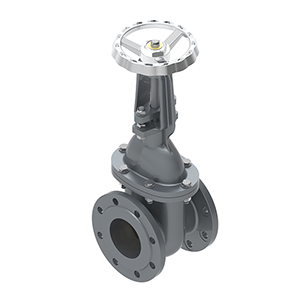

Design EN 12288
Face to face EN 558-1 Series 14 (DIN 3202 F4)
Flanges Flanges according to EN 1092
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 40–250 300–400
Nominal Pressure PN 10 16 10
Maximum pressure Up to 100ºC 10 16 10
Up to 225ºC 6,6 10,7 6,6

Design features

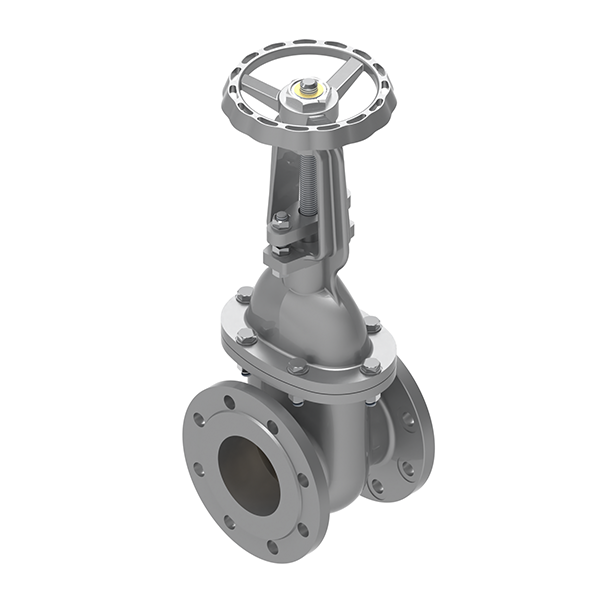

Design EN 1984
Face to face EN 558-1 Series 14 (DIN 3202 F4)
Flanges Flanges according to EN 1092
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 40–250 300–400
Nominal Pressure PN 10 16 10
Maximum pressure Up to 100ºC 9,4 15 9,4
Up to 225ºC 8 12,8 8

Design features

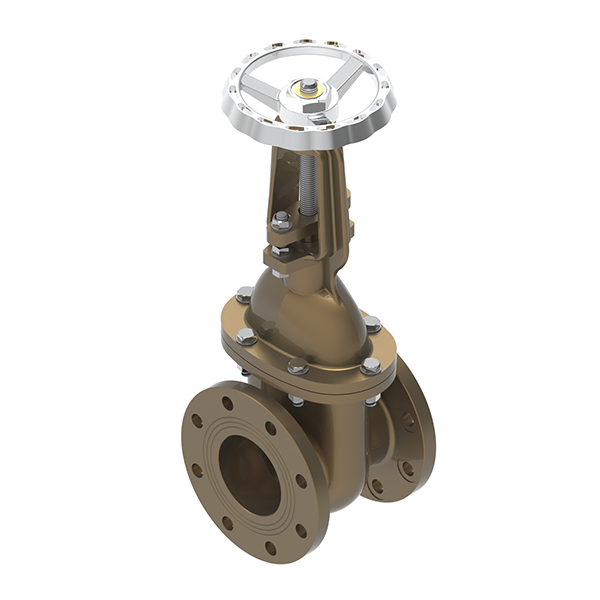

Design EN 1984
Face to face EN 558-1 Series 14 (DIN 3202 F4)
Flanges Flanges according to EN 1092
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 40–250 300–400
Nominal Pressure PN 10 16 10
Maximum pressure Up to 100ºC 9,5 15,2 9,5
Up to 225ºC 7,3 11,6 7,3

Optional features

Motorization Possibility to be motorized
Integrated Logistics Support (ILS) Technical documentation (access via QR code)
Procurement of spare parts (LCRS)
Logistics engineering (obsolescence / costs)

More than a valve. A solution ready to evolve.
