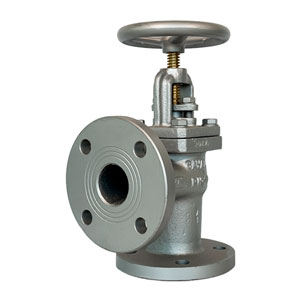

Globe Valve Angle – SDNR Type
Globe Valve Angle – SDNR Type
Details

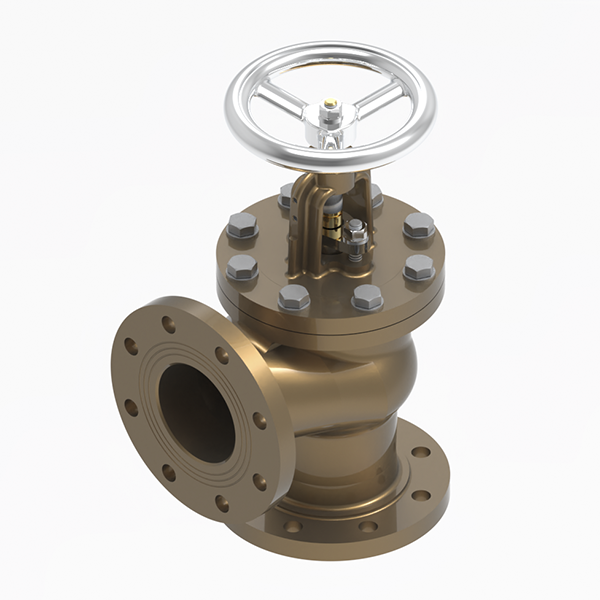

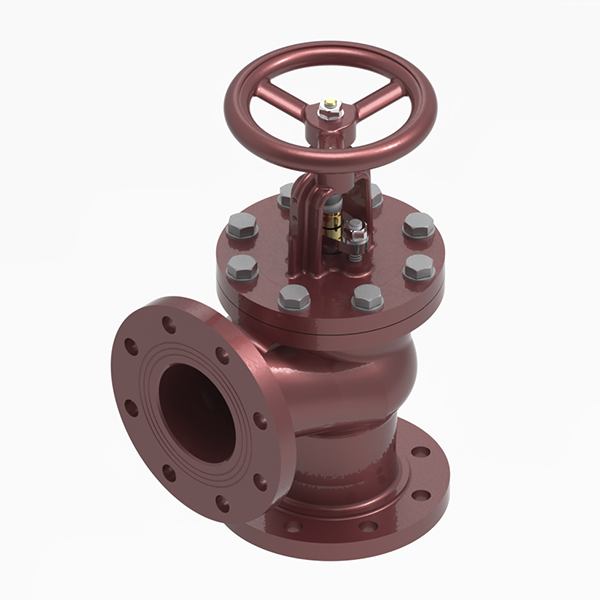

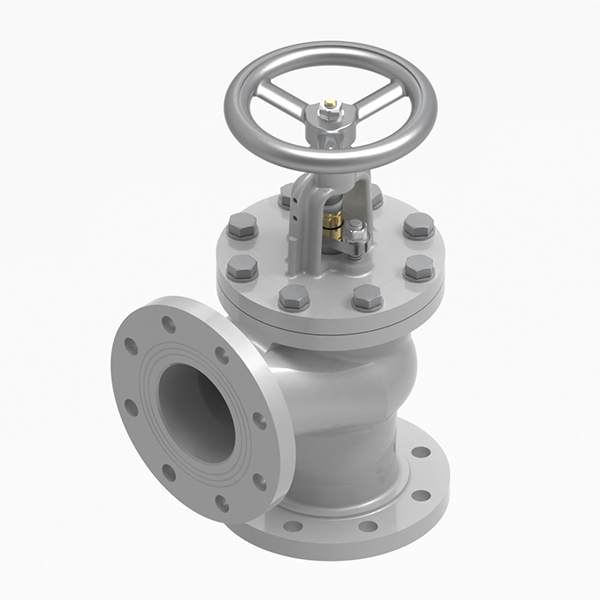

Material selection
Design features
| Design |
EN 13789 (DIN 86262 part 5) |
| Face to face |
EN 558 Series 8, (DIN 3202 F32) |
| Flanges |
Flanges according to EN 1092 (DIN 2633) |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
|
Size |
DN
15-250 |
300-400 |
| Nominal Pressure |
PN |
10 |
16 |
10 |
| Maximum pressure |
Up to 100ºC |
10 |
16 |
10 |
| Up to 225ºC |
6,6 |
10,75 |
6,6 |
Design features
| Design |
EN 13709 (DIN 86262 part 5) |
| Face to face |
EN 558 Series 8, (DIN 3202 F32) |
| Flanges |
Flanges according to EN 1092 (DIN 2633) |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
|
Size |
DN
15-250 |
300-400 |
| Nominal Pressure |
PN |
10 |
16 |
10 |
| Maximum pressure |
Up to 100ºC |
9,4 |
15 |
9,4 |
| Up to 225ºC |
8 |
12,85 |
8 |
Design features
| Design |
EN 13709 (DIN 86262 part 5) |
| Face to face |
EN 558 Series 8, (DIN 3202 F32) |
| Flanges |
Flanges according to EN 1092 (DIN 2633) |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
|
Size |
DN
15-250 |
300-400 |
| Nominal Pressure |
PN |
10 |
16 |
10 |
| Maximum pressure |
Up to 100ºC |
9,5 |
15,2 |
9,5 |
| Up to 225ºC |
7,3 |
11,6 |
7,3 |
Design features
| Design |
EN 13789 (DIN 3356 part 5) |
| Face to face |
EN 558 Series 8, (DIN 3202 F32) |
| Flanges |
Flanges according to EN 1092 (DIN 2633) |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
|
Size |
DN
15-250 |
300-400 |
| Nominal Pressure |
PN |
10 |
16 |
10 |
| Maximum pressure |
Up to 100ºC |
10 |
16 |
10 |
| Up to 225ºC |
8,95 |
14,3 |
8,95 |
Optional features
| Motorization |
Possibility to be motorized |
| Indicator |
Possibility of position indicator |
| Integrated Logistics Support (ILS) |
Technical documentation (QR access)
Spare parts procurement (LCRS)
Logistics engineering (obsolescence / costs) |
More than a valve. A solution ready to evolve.
