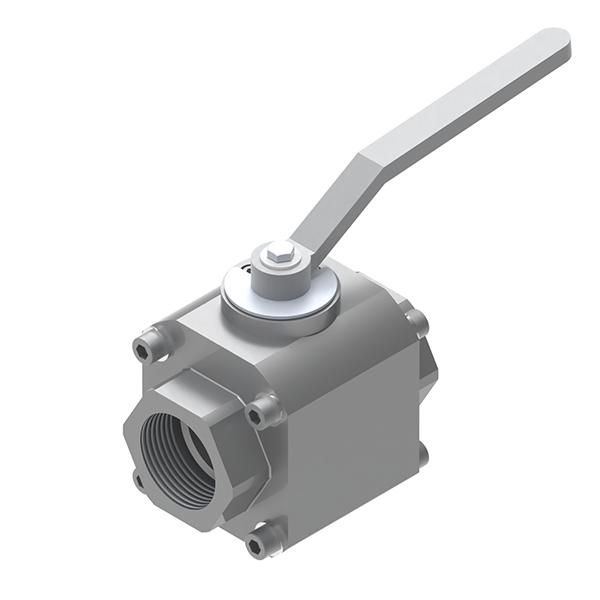

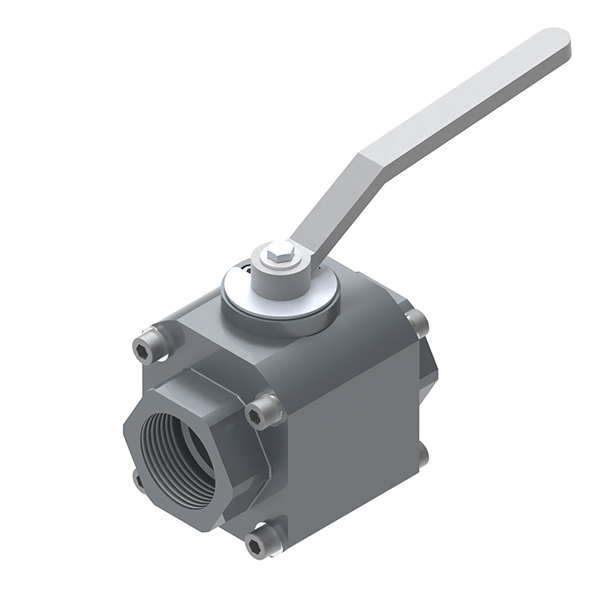

3-Piece Ball Valve Threaded Ends

3-Piece Ball Valve Threaded Ends

Details

Valves Saval ball 3 pieces with threaded ends. Manufactured in bronze (CuAl10Ni), mild steel and stainless steel. 100% Tested valves.

Material selection

Design features

Design Three-Piece body. Full bore UNE EN 1983
Body Material CuAl10Ni bar
Ball material BrNiAl
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 8–50
Nominal pressure PN 40
Maximum pressure Up to 100°C 40

Design features

Design Three-Piece body. Full bore UNE EN 1983
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 8–50
Nominal pressure PN 40
Maximum pressure Up to 100°C 40

Design features

Design Three-Piece body. Full bore UNE EN 1983
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 8–50
Nominal pressure PN 40
Maximum pressure Up to 100°C 38.1

Optional features

Integrated Logistics Support (ILS) Technical documentation (access via QR code)
Procurement of spare parts (LCRS)
Logistics engineering (obsolescence / costs)

More than a valve. A solution ready to evolve.
