Globe Valve Straight – SDNR Type

Globe Valve Straight – SDNR Type

Details

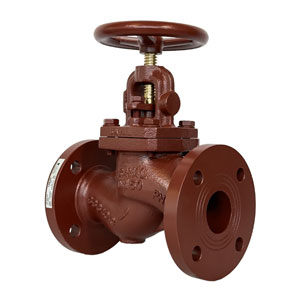

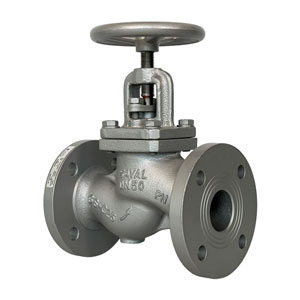

Globe valves, straight SDNR type. 100% tested valves.

Material selection

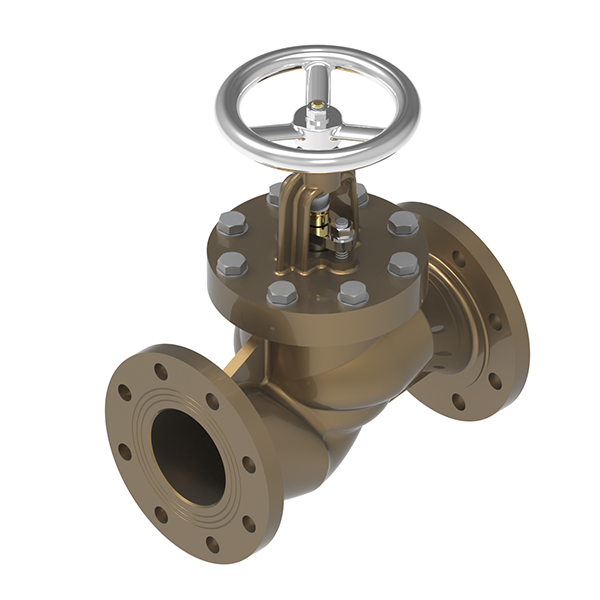

Design features

Design EN 13789 (DIN 86262 part 5)
Face to face EN 558 Series 1 (DIN 3202 F1)
Flanges Flanges according to EN 1092 (DIN 2633)
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 15-250 300-400
Nominal Pressure PN 10 16 10
Maximum pressure Up to 100ºC 10 16 10
Up to 225ºC 6,6 10,75 6,6

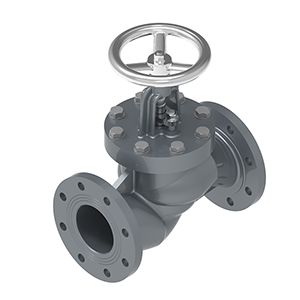

Design features

Design EN 13709 (DIN 86262 part 5)
Face to face EN 558 Series 1 (DIN 3202 F1)
Flanges Flanges according to EN 1092 (DIN 2633)
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 15-250 300-400
Nominal Pressure PN 10 16 10
Maximum pressure Up to 100ºC 9,4 15 9,4
Up to 225ºC 8 12,85 8

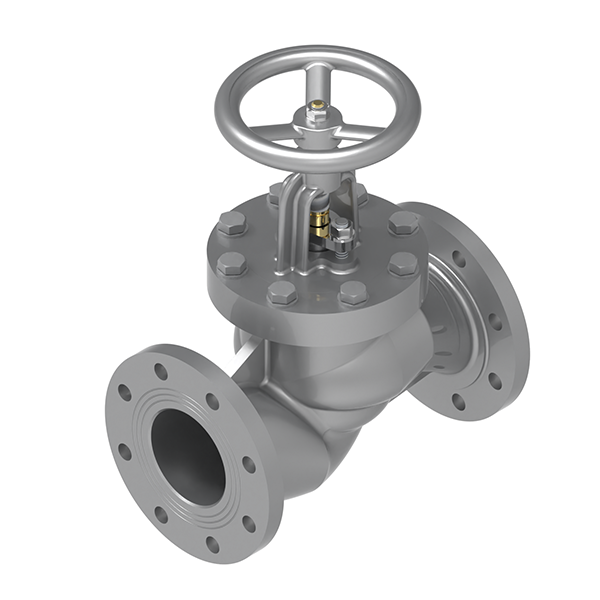

Design features

Design EN 13709 (DIN 86262 part 5)
Face to face EN 558 Series 1 (DIN 3202 F1)
Flanges Flanges according to EN 1092 (DIN 2633)
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 15-250 300-400
Nominal Pressure PN 10 16 10
Maximum pressure Up to 100ºC 9,5 15,2 9,5
Up to 225ºC 7,3 11,6 7,3

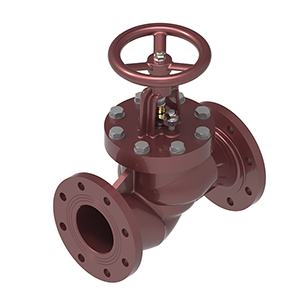

Design features

Design EN 13789 (DIN 3356 part 5)
Face to face EN 558 Series 1 (DIN 3202 F1)
Flanges Flanges according to EN 1092 (DIN 2633)
Hydraulic tests Tightness and sealing according to EN 12266-1

Working conditions

Size DN 15-250 300-400
Nominal Pressure PN 10 16 10
Maximum pressure Up to 100ºC 10 16 10
Up to 225ºC 8,95 14,3 8,95

Optional features

Motorization Possibility to be motorized
Indicator Possibility of position indicator
Integrated Logistics Support (ILS) Technical documentation (access via QR code)
Procurement of spare parts (LCRS)
Logistics engineering (obsolescence / costs)

More than a valve. A solution ready to evolve.
