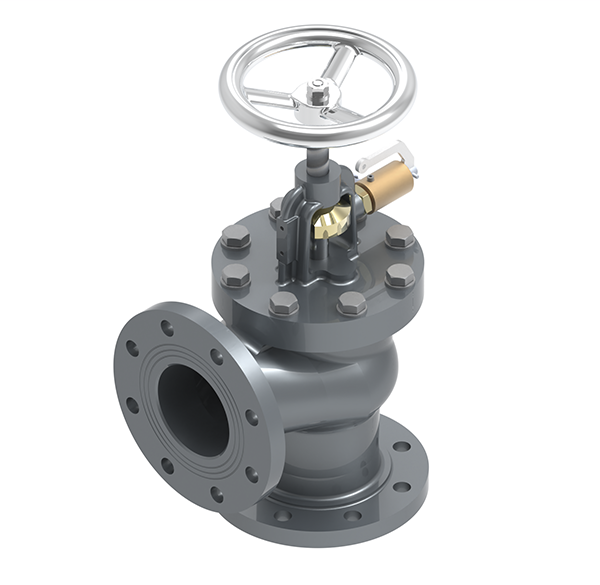

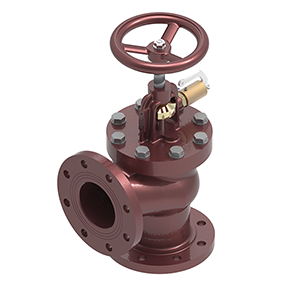

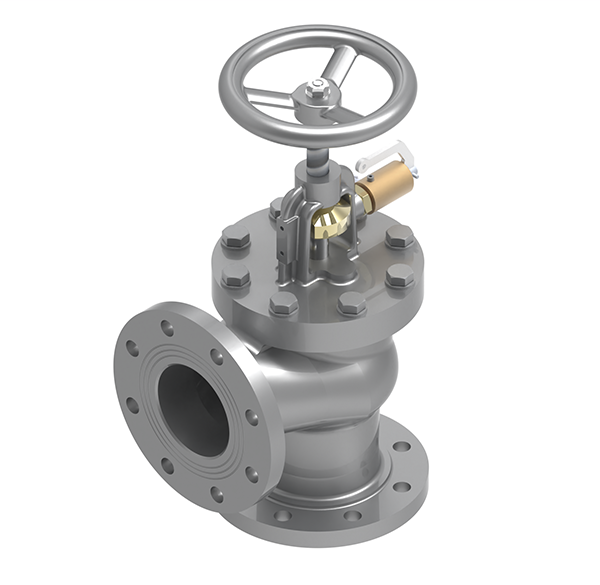

Quick Closing Angle Valve
Quick Closing Angle Valve
Details
Material selection
Design features
| Design |
EN 13709 (DIN 3356 part 5) |
| Face to face |
EN 558 series 8 (DIN 3202 F32) |
| Flanges |
Flanges according to EN 1092 (DIN 2633 PN16) |
| Trigger connection |
Thread 1/8” BSP |
| Supplied with |
R1/8″ BSP – ø8L connector |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
| Size |
DN |
15 |
150 |
| Nominal pressure |
PN |
10 |
16 |
| Maximum pressure |
Up to 100ºC |
9,4 |
15 |
Design features
| Design |
EN 13709 (DIN 3356 part 5) |
| Face to face |
EN 558 series 8 (DIN 3202 F32) |
| Flanges |
Flanges according to EN 1092 (DIN 2633 PN16) |
| Trigger connection |
Thread 1/8” BSP |
| Supplied with |
R1/8″ BSP – ø8L connector |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
| Size |
DN |
15 |
150 |
| Nominal pressure |
PN |
10 |
16 |
| Maximum pressure |
Up to 100ºC |
9,5 |
15,2 |
Design features
| Design |
EN 13789 (DIN 3356 part 5) |
| Face to face |
EN 558 series 8 (DIN 3202 F32). |
| Flanges |
Flanges according to EN 1092 (DIN 2633 PN16) |
| Trigger connection |
Thread1/8” BSP |
| Supplied with |
R1/8″ BSP – ø8L connector |
| Hydraulic tests |
Tightness and sealing according to EN 12266-1 |
Working conditions
| Size |
DN |
15 |
150 |
| Nominal pressure |
PN |
10 |
16 |
| Maximum working pressure |
Up to 100°C |
10 |
16 |
Optional features
| Indicator |
With limit switch indicator |
| Integrated Logistics Support (ILS) |
Technical documentation (QR access)
Spare parts procurement (LCRS)
Logistics engineering (obsolescence / costs) |
More than a valve. A solution ready to evolve.
